M-Shunt Evaluation Kits

Fast evaluation of M-Shunt technology.

Pre-configured evaluation kits for rapid integration and testing in high-speed power electronics applications.

Evaluation Kits provide a flexible entry point for engineers, laboratories and development teams evaluating M-Shunt technology in real switching environments.

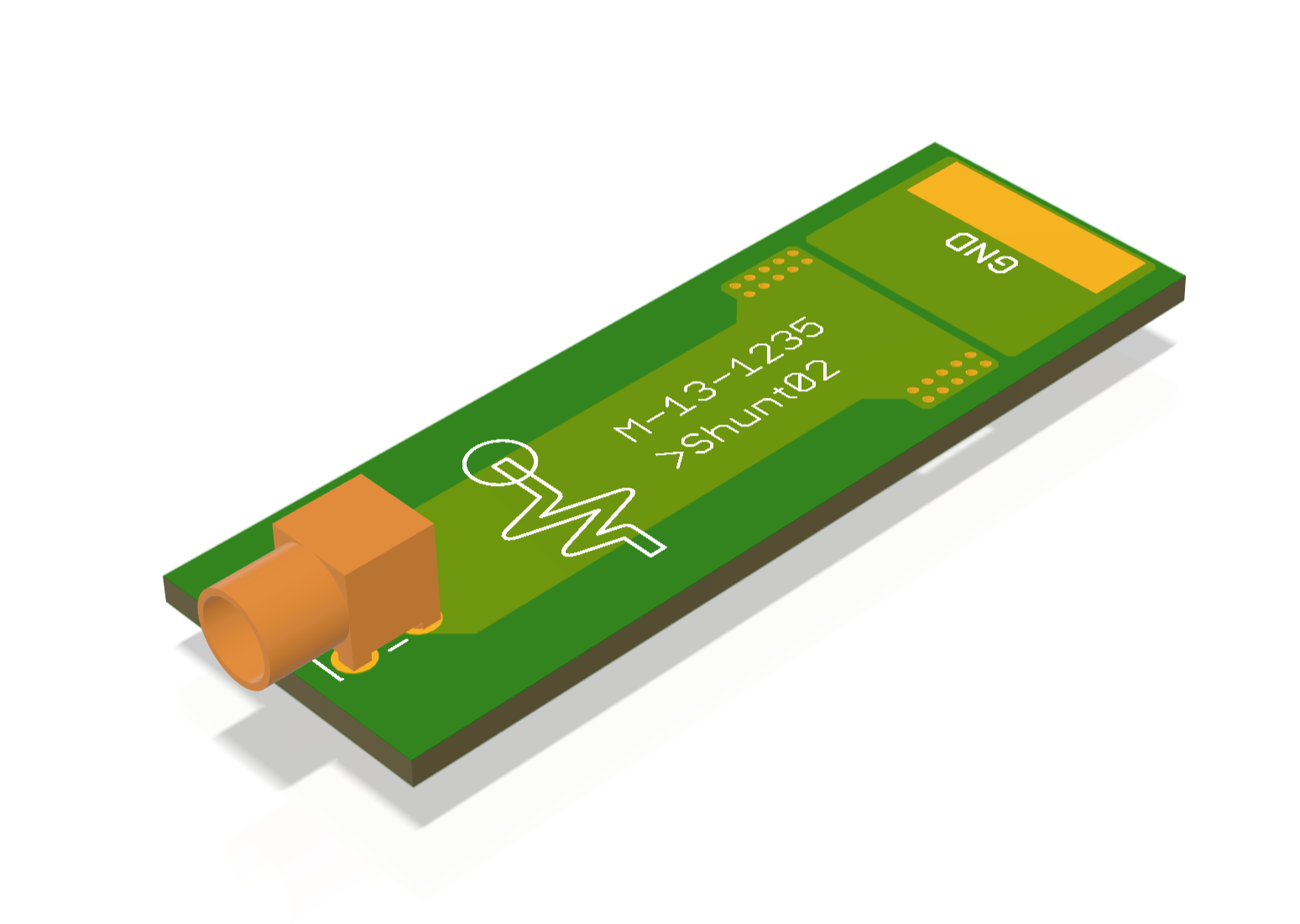

Core Evaluation Kit

SKCore

Evaluation kit with 3 selectable Core M-Shunts for high-current and high-power applications.

Includes

3 Core M-Shunts

Selectable Models

#1235
#1242
#2578

Model selection is specified during ordering.

Typical Applications

High-current switching measurements
SiC inverter characterisation
Converter validation
Reliability testing

Datasheet Core M-Shunt Request Starter Kit

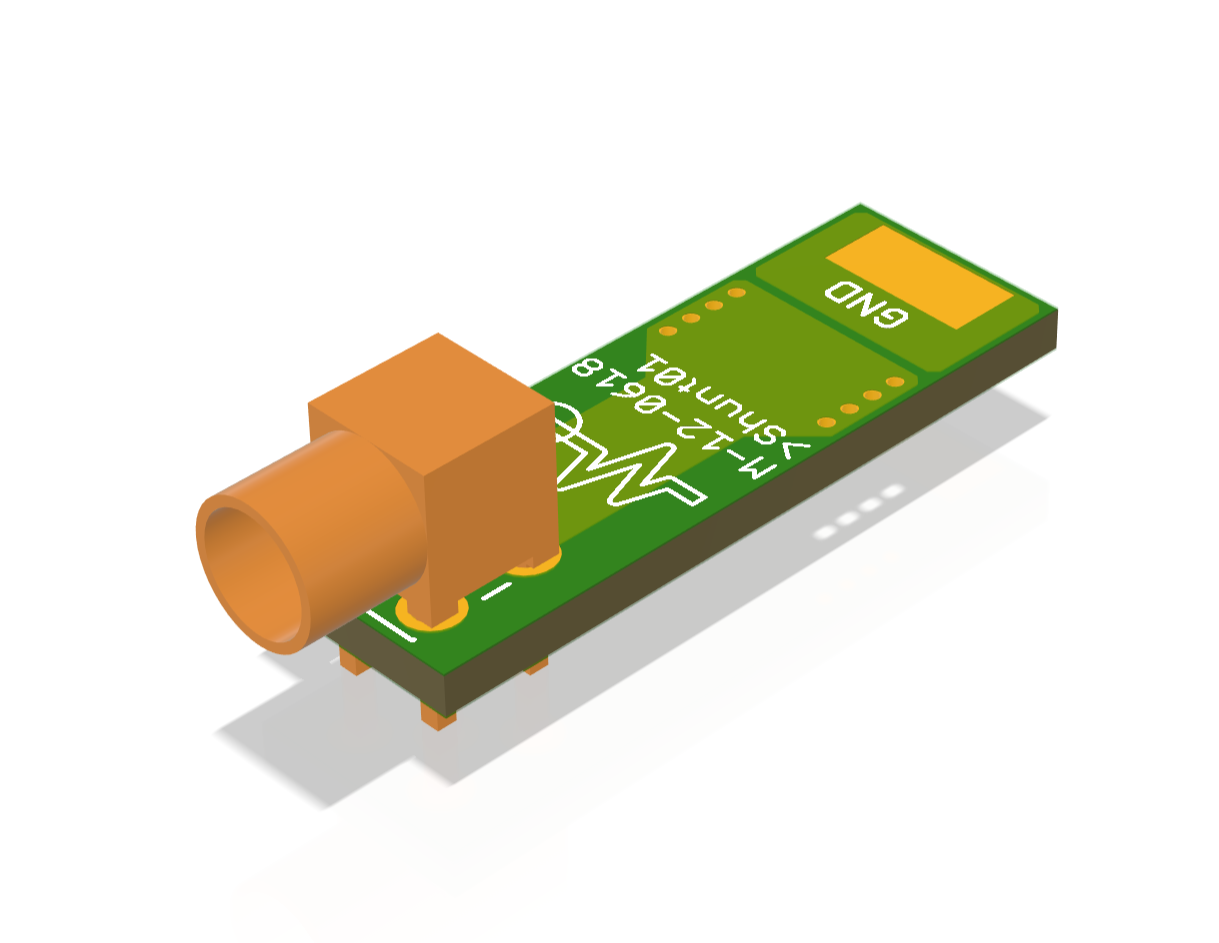

Mini Evaluation Kit

SKMini

Compact evaluation kit with 4 Mini M‑Shunts for space constrained switching applications.

Includes

4 Mini M-Shunts

Selectable Models

#0612
#0618
#0626

Model selection is specified during ordering.

Typical Applications

Compact converter systems
Fast transient measurements
Embedded switching analysis
Laboratory evaluation setups

Datasheet Mini M-Shunt Request Starter Kit

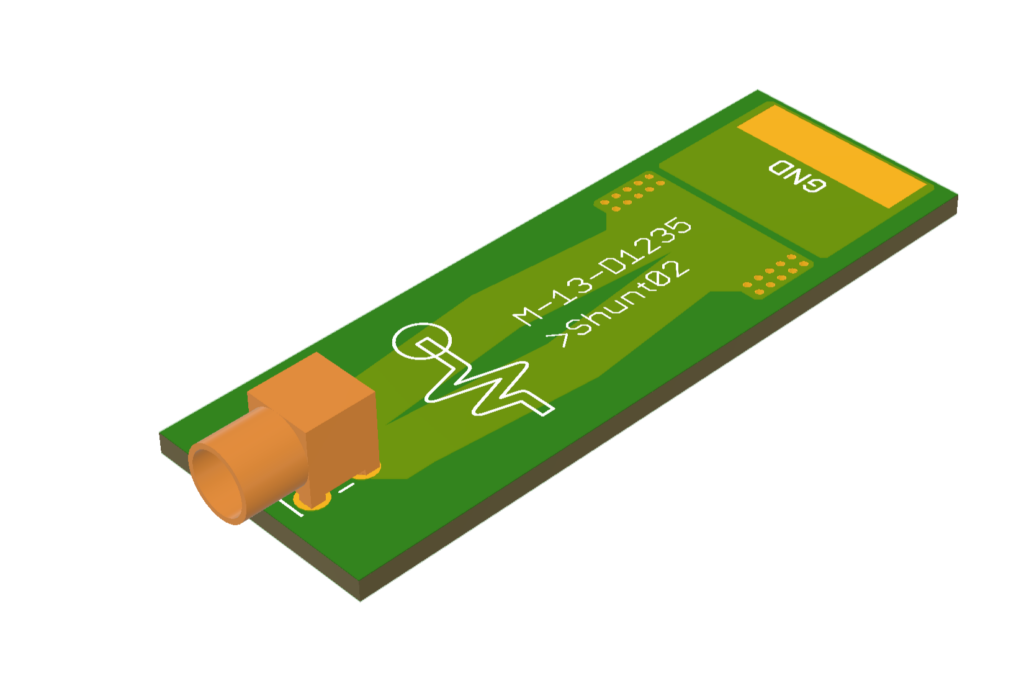

Diamond Evaluation Kit

SKDia

Evaluation kit for assessing Diamond M-Shunts in advanced transient current measurement setups.

Includes

2 Diamond M-Shunts

Single model configuration.

Typical Applications

Advanced switching characterisation
High-bandwidth transient analysis
Research and development setups
Precision current measurement

Datasheet Diamond M-Shunt Request Starter Kit

Market Introduction

For the initial market launch, M‑Shunt products are available exclusively as Evaluation Kits.

The kits provide a streamlined entry point for engineers, laboratories and development teams seeking to evaluate M‑Shunt technology in real switching environments.

Custom Configurations & Volume Requests

Larger quantities, additional M-Shunt variants and application-specific custom configurations are available on request.

Please contact the M-Shunt team for:

Volume enquiries
Custom geometries
Application-specific adaptations
Technical consultation
Integration support

Technical Support & Ordering

Evaluation kits can be configured according to application requirements and preferred M-Shunt variants.

For technical consultation, pricing information or availability, please contact the M-Shunt team.

Request Evaluation Kit

Interested in evaluating M-Shunt technology in your application?

Product selection support
Application-specific recommendations
Technical integration discussions
Availability and lead times

Disclaimer

Technical specifications provided in the associated datasheets are based on typical measurement results and application experience. Values are intended for technical guidance only and do not constitute guaranteed characteristics or warranted performance parameters. Actual performance may vary depending on application, operating conditions and system integration.

M-Shunt products are intended for engineering evaluation, laboratory use and integration into customer-specific systems. Suitability for a specific application must be verified by the customer.

Liability for damages resulting from improper use, integration or application is excluded to the extent permitted by applicable law.
